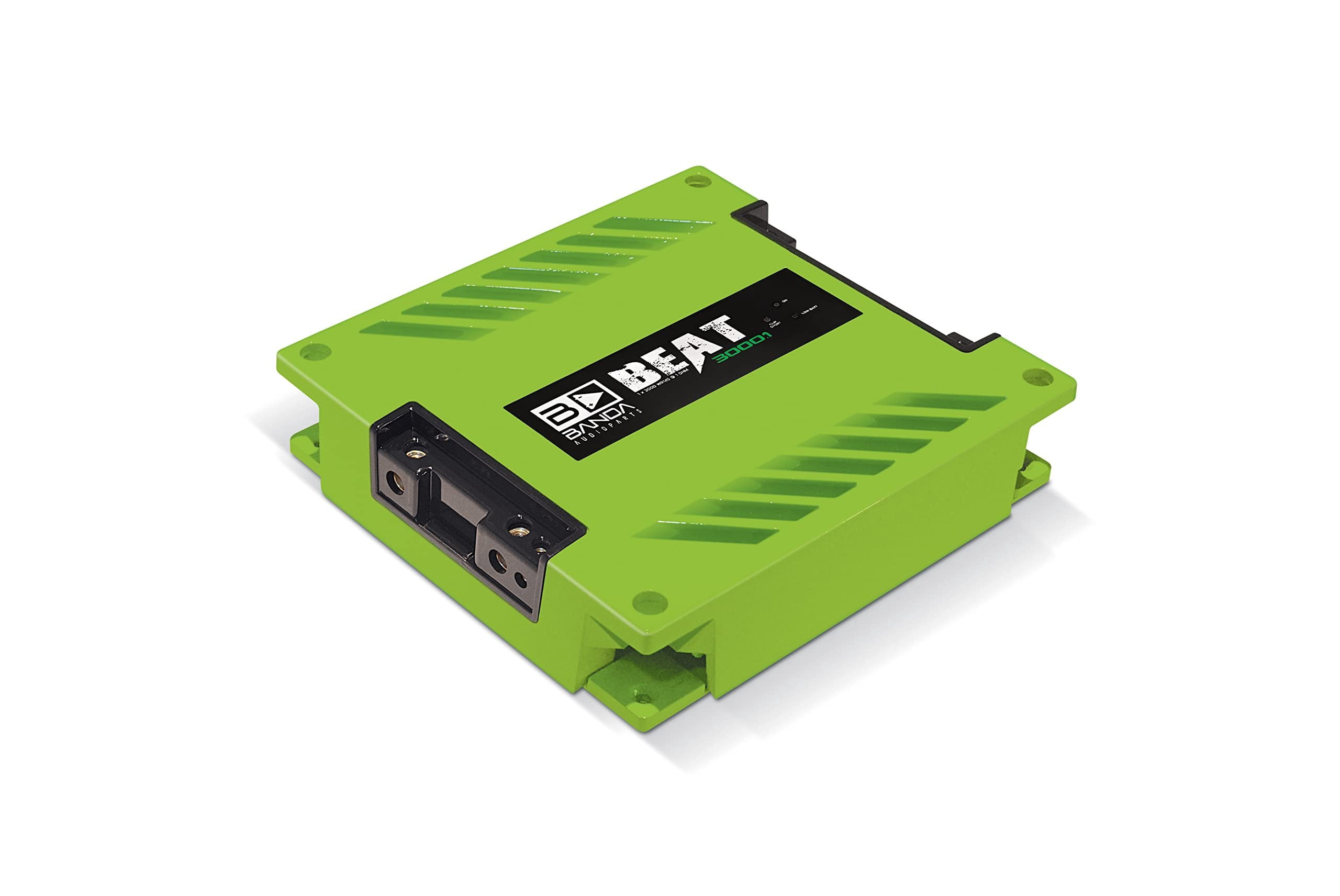

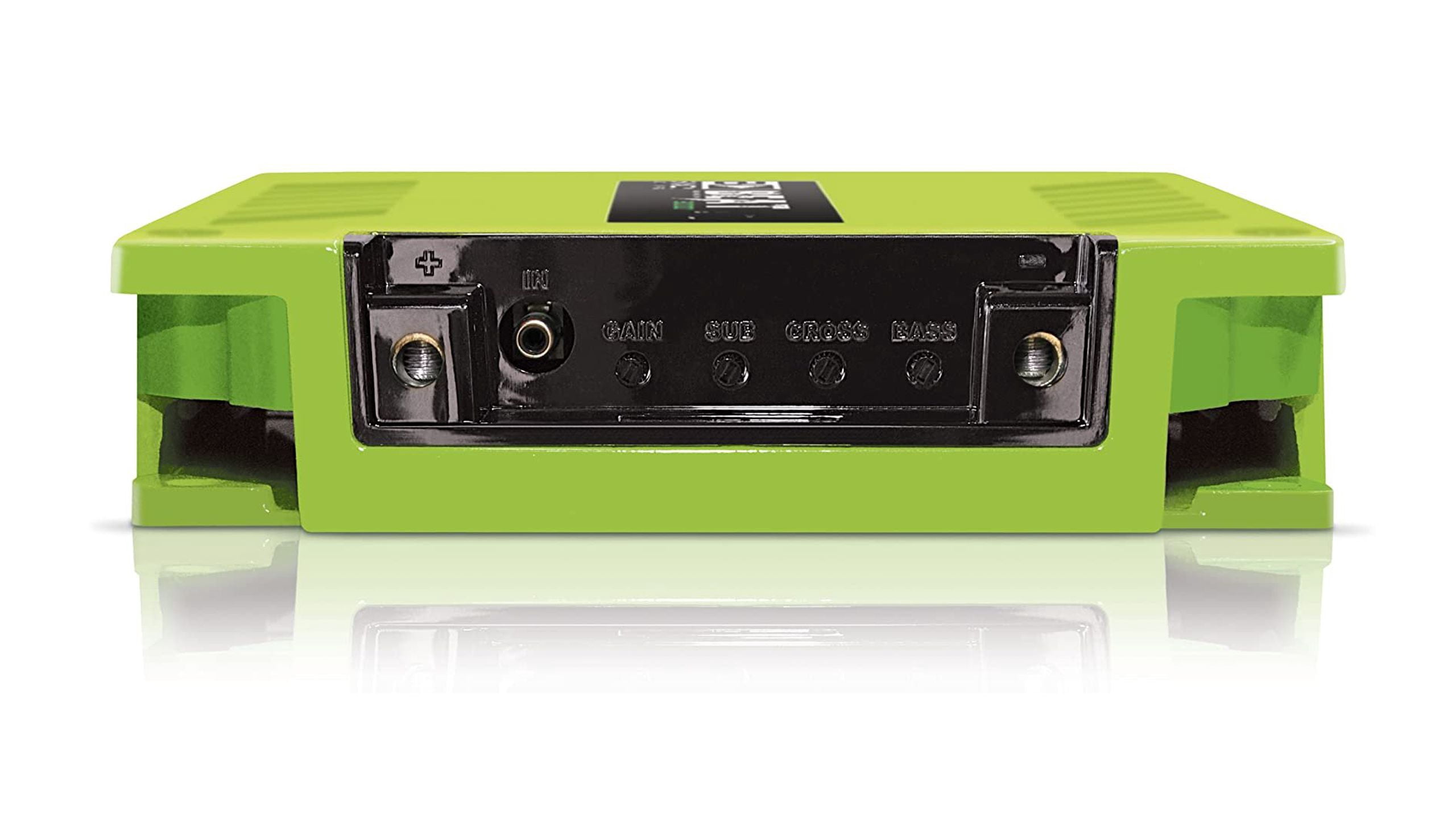

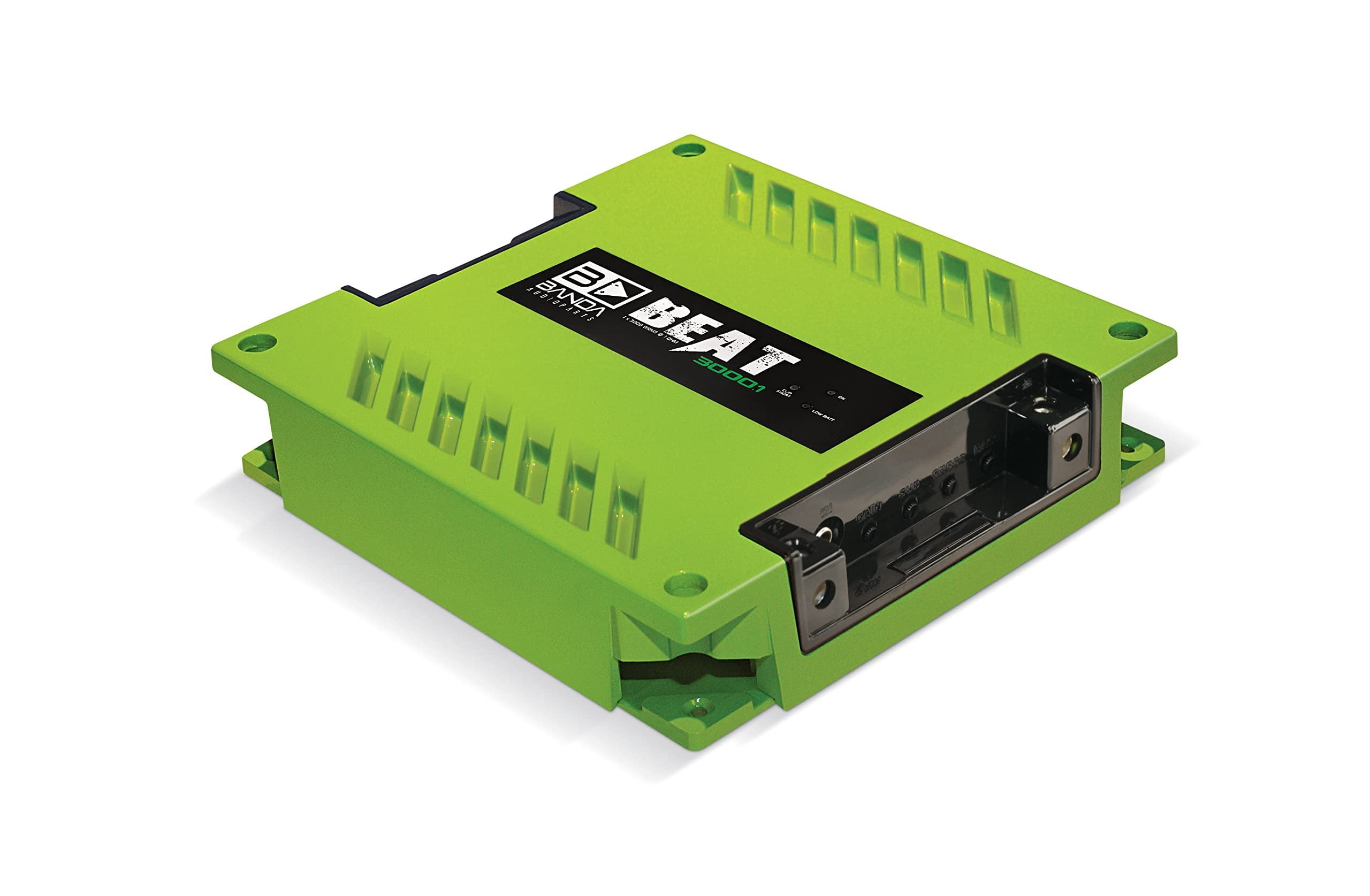

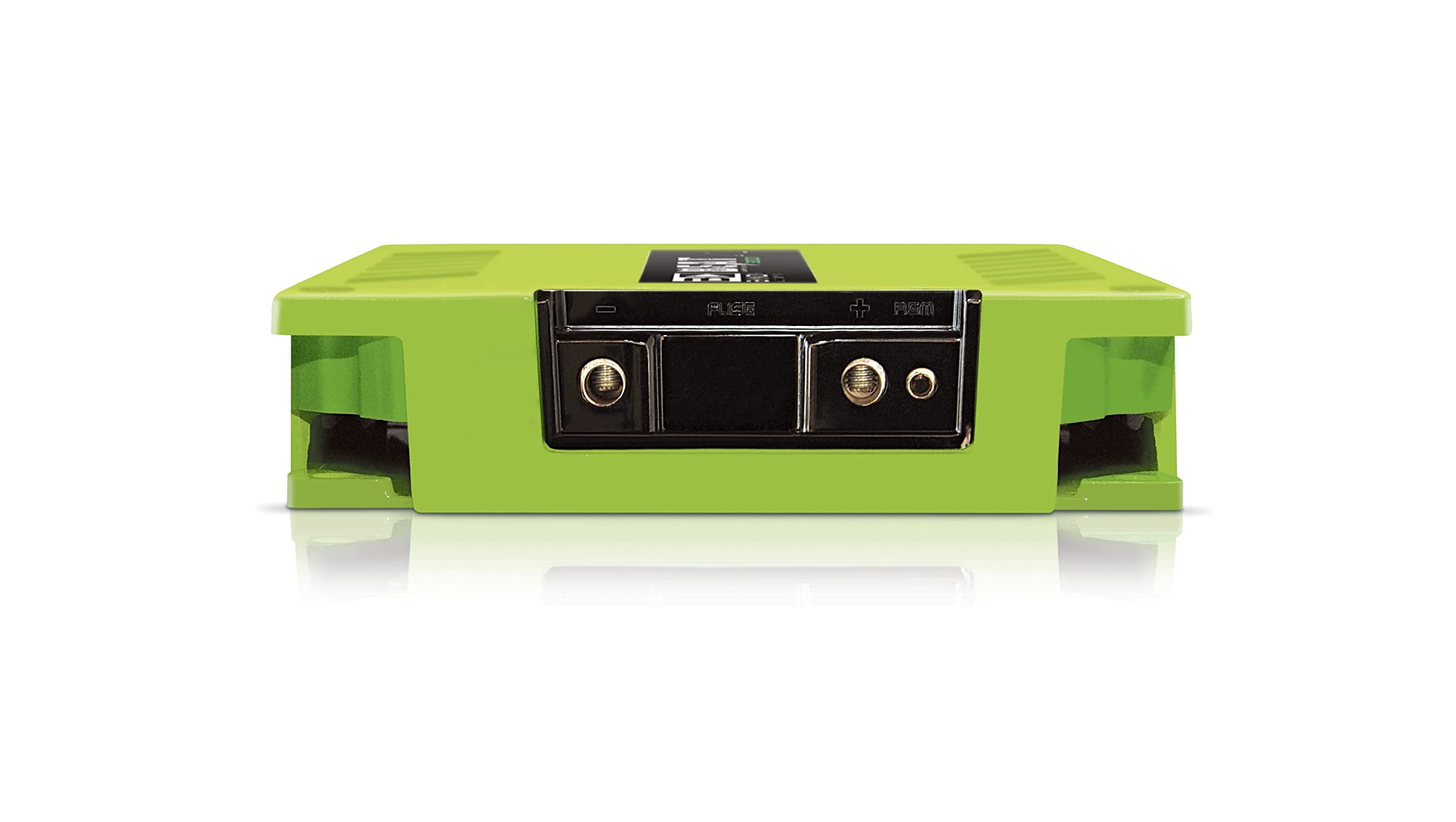

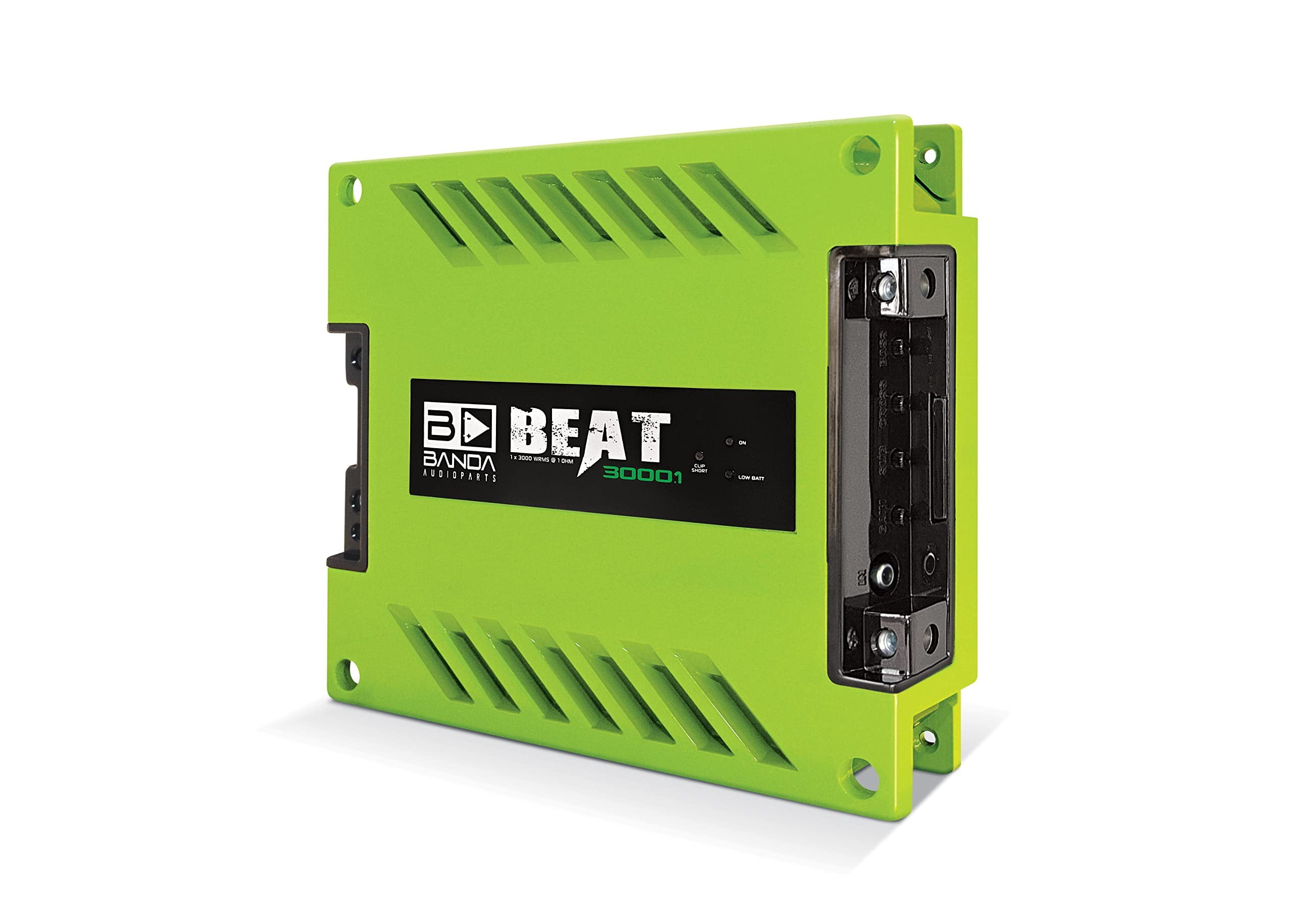

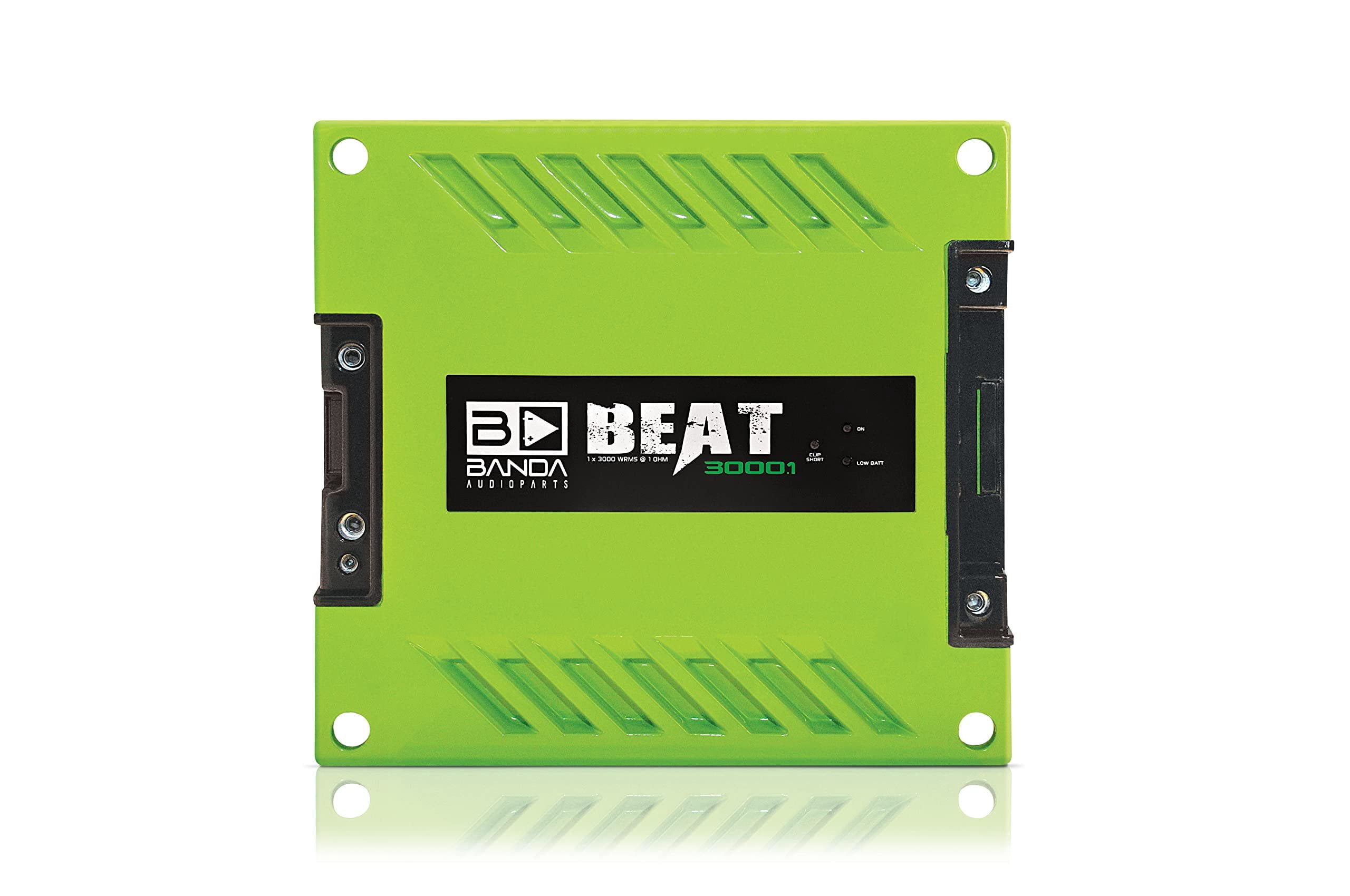

High Power Vehicle Audio Mono Bass Amplifier w/Subsonic Filter and Low Pass Filter Stable at 1 ohm GREEN
Product details
| Management number | 238018084 | Release Date | 2026/07/11 | List Price | US$120.00 | Model Number | 238018084 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
<p>Class D vehicle audio amplifier. Total Power 14.4 @ 1 Ohm: 3900 WRMS. Total Power 14.4 @ 2 Ohms: 2900 WRMS. Total Power 12.6 @ 1 Ohm: 3000 WRMS. Total Power 12.6 @ 2 Ohms: 2300 WRMS. Efficiency @ 2 Ohms: 78%. Efficiency @ 1 Ohm: 71%. Input Voltage: 9 to 15V. Input Impedance: 100K Ohms. THD+Noise: less than 1%. Input Sensitivity: 110mV to 4V. SNR: 80dB. Frequency Response: 20 to 20KHz (-3dBs). HPF (Subsonic): 20 to 80Hz @ 12dB/octave Linkwitz-Riley. LPF (Crossover): 80 to 20kHz @ 12dB/octave Linkwitz-Riley. Recommended Fuse: 150 A. Current at Rest: 1.5 A. Average Current Draw (Sinusoidal): 360 A. Average Current Draw (Music): 180 A. Power Wire Gauge (min. Recommended): 21mm / 4 AWG. Speaker Wire Gauge (min. Recommended): 2 x 4mm / 2 x 11 AWG. Weight (Lb): 7.6, Height (in): 2.2, Width (in): 8.4, Depth (in): 9.7</p>
- Class D vehicle audio amplifier
- Total Power 14.4 @ 1 Ohm: 3900 WRMS
- Total Power 14.4 @ 2 Ohms: 2900 WRMS
- Total Power 12.6 @ 1 Ohm: 3000 WRMS
- Total Power 12.6 @ 2 Ohms: 2300 WRMS
- Efficiency @ 2 Ohms: 78%
- Efficiency @ 1 Ohm: 71%
- Input Voltage: 9 to 15V
- Input Impedance: 100K Ohms
- THD+Noise: less than 1%
- Input Sensitivity: 110mV to 4V
- SNR: 80dB
- Frequency Response: 20 to 20KHz (-3dBs)
- HPF (Subsonic): 20 to 80Hz @ 12dB/octave Linkwitz-Riley
- LPF (Crossover): 80 to 20kHz @ 12dB/octave Linkwitz-Riley
- Recommended Fuse: 150 A
- Current at Rest: 1.5 A
- Average Current Draw (Sinusoidal): 360 A
- Average Current Draw (Music): 180 A
- Power Wire Gauge (min. Recommended): 21mm / 4 AWG
- Speaker Wire Gauge (min. Recommended): 2 x 4mm / 2 x 11 AWG
- Weight (Lb): 7.6, Height (in): 2.2, Width (in): 8.4, Depth (in): 9.7
| Brand | Banda Audioparts |
|---|---|
| Rms power rating | 3000 W |
| Channels | 1 |
| Impedance | 1 ohm |
| Features | Compact |
| Peak audio power handling | 3900 W |
| Input/output type | RCA |
| Rec. use | Car Audio |
| Size | 9.7'' x 8.4'' x 2.2'' -inches |
| Color | Green |
| Rec location | Vehicle |
| Audio output | 3000 W |
| Total harmonic distortion | 1 % |
| Signal-to-noise ratio | 80 dB |
| Inputs/Outputs | RCA connectors |
| Input/output direction | Input |
| Model | BEAT3000.1GREEN |
| Vehicle type | Motor Vehicle |
| Vehicle fitment type | Universal |
| Has written warranty | No |
| Has nrtl listing certification | N |
| Assembled product weight | 1 lbs |
| Volts | 14.4 V |
| Amps | 1.5 Amps |
